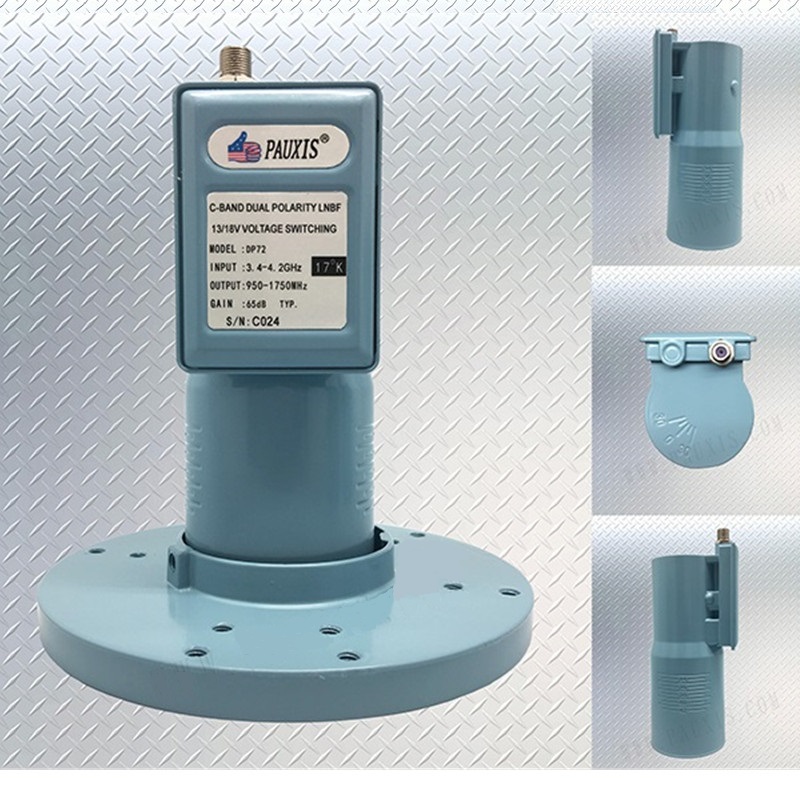

PAUXIS DP72 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF
| 1 | Noise Temperature Maximum (Horizontal and Vertical) | 17°K |
| 2 | Typical Gain | 63dB |
| 3 | Minimum Gain (Horizontal and Vertical) | 55dB |
| 4 | Maximum Gain (Horizontal and Vertical) | 70dB |
| 5 | Gain Flatness (Horizontal and Vertical) | 10dB |
| 6 | Cross Polarization Minimum (Horizontal and Vertical) | 20dB MIN |
| 7 | Input Frequency range | 3.4GHz～4.2GHz |
| 8 | Output Frequency range | 950MHz～1750MHz |
| 9 | Local Oscillator Frequency | 5150MHz |
| 10 | Local Oscillator Stability in 25°C | 5150MHz（±1MHz) |
| 11 | Return Loss (from 950MHz to 1750MHz in 100MHz steps) | 10dB（TPY) |
| 12 | Phase Noise at 1kHz, 10kHz and 100kHz (if multipoint, for vertical and horizontal LO frequencies) | -60dBc/Hz@1KHz -90 dBc/Hz@10KHz -100 dBc/Hz@100KHz |
| 13 | Input VSWR | 2.5:1 |
| 14 | Output VSWR | 2.5:1 |
| 15 | Gain Flatness | ±1dB / 36MHz |
| 16 | Image Rejection | 40 dB |
| 17 | Current Consumption (for 13V and 18V) | 110MA(MAX) |
| 18 | Temperature Operation range | -30 ℃ ～ +70 ℃ |
| 19 | Temperature Storage range | -40 ℃ ～ +80 ℃ |
| 20 | Relative Humidity range | 0%～95% |
| 21 | Dimensions (mechanical drawing) | 173mm*60mm |
| 22 | Number of output connections | ONE |
| 23 | Type of output connections | "F" TYPE FEMALE |
| 24 | Impedance of output connections | 75 OHMS |
