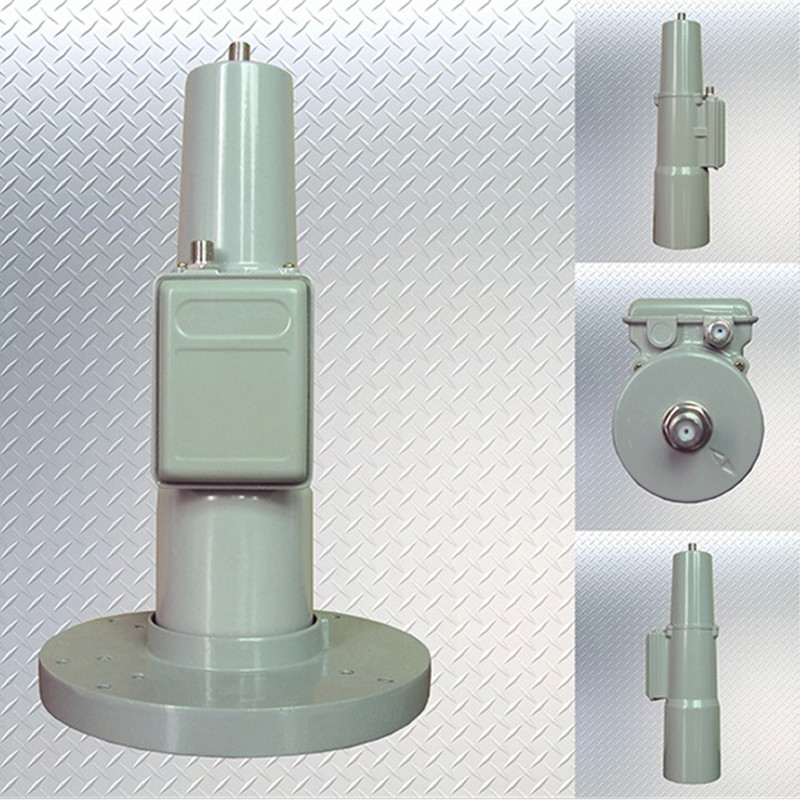

PAUXI CKU-C02+KCK8 DUAL POLARITY SINGLE OUTPUT LNBF

MODEL:	CKU-C022K8
Parameter	Specification
	C-BAND	KU-BAND
Input frequency range	3.4-4.2GHZ	10.7-11.7GHZ	11.7-12.75GHZ
Output frequency range	950-1750MHZ	950-1950MHZ	1100-2150MHZ
Noise Figure	40TEK(MAX.)	1.2dB(MAX.)
Conversion Gain	65dB(TYP.)	53dB(MIN.) 67dB(MAX.)
Gain Flatness	±1dB/36MHZ	±0.5dB/26MHZ
Cross pol Isolation	21dB(TYP.)
L.O.Frequency	5.15GHZ	9.75GHZ	10.6GHZ
L.O.Frequency Stability	±1MHZ(MAX.) @ ＋25℃
	±2MHZ(MAX.) @ -40℃～＋80℃
L.O.Phase Noise	-60dBc/HZ @ 1KHZ
	-80dBc/HZ @ 10KHZ
	-100dBc/HZ @ 100KHZ
Gain Variation P-P	±4dB(MAX.)
Image Rejection	40dB(MIN.)
P 1dB Gain Compression	0dBm(MIN.)
Output VSWR	2.5:1(MAX.)
DC Current Consumption	120mA(MAX)	85mA(MAX)
LOW/HIGH BAND Switching		0KHZ	22±4KHZ
Output Connecter	75Ω(F-Type)Female
POL Switching Voltage	11.5～14.5V @ V Polarization
	15.5～22.0V @ H Polarization
Operating Temperature	-40℃～＋80℃

C-BAND TWIN LNBF Technical Specification 1 Noise Temperature Maximum (Horizontal and Vertical) 17°K 2 Typical Gain 63dB 3 Minimum Gain (Horizontal and Vertical) 55dB 4 Maximum Gain (Horizontal and Vertical) 70dB 5 Gain Flatness (Horizontal and Vertical) 10dB 6 Cross Polarization Minimum (Horizontal and Vertical) 20dB MIN 7 Input Frequency range 3.7GHz～4.2GHz 8 Output Frequency range 950MHz～1450MHz 9 Local Oscillator Frequency 5150MHz 10 Local Oscillator Stability in 25°C 5150MHz（±1MHz) 11 Return Loss (from 950MHz to 1750MHz in 100MHz steps) 10dB（TPY) 12 Phase Noise at 1kHz, 10kHz and 100kHz (if multipoint, for vertical and horizontal LO frequencies) -65dBc/Hz@1KHz -95 dBc/Hz@10KHz -110 dBc/Hz@100KHz 13 Input VSWR 2.5:1 14 Output VSWR 2.5:1 15 Gain Flatness ±1dB / 36MHz 16 Image Rejection 40 dB 17 Current Consumption (for 13V and 18V) 120MA(MAX) 18 Temperature Operation range -30 ℃ ～ +70 ℃ 19 Temperature Storage range -40 ℃ ～ +80 ℃ 20 Relative Humidity range 0%～95% 21 Dimensions (mechanical drawing) 183mm*60mm 22 Number of output connections ONE 23 Type of output connections "F" TYPE FEMALE 24
