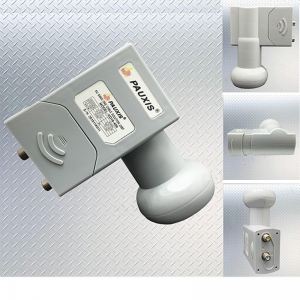

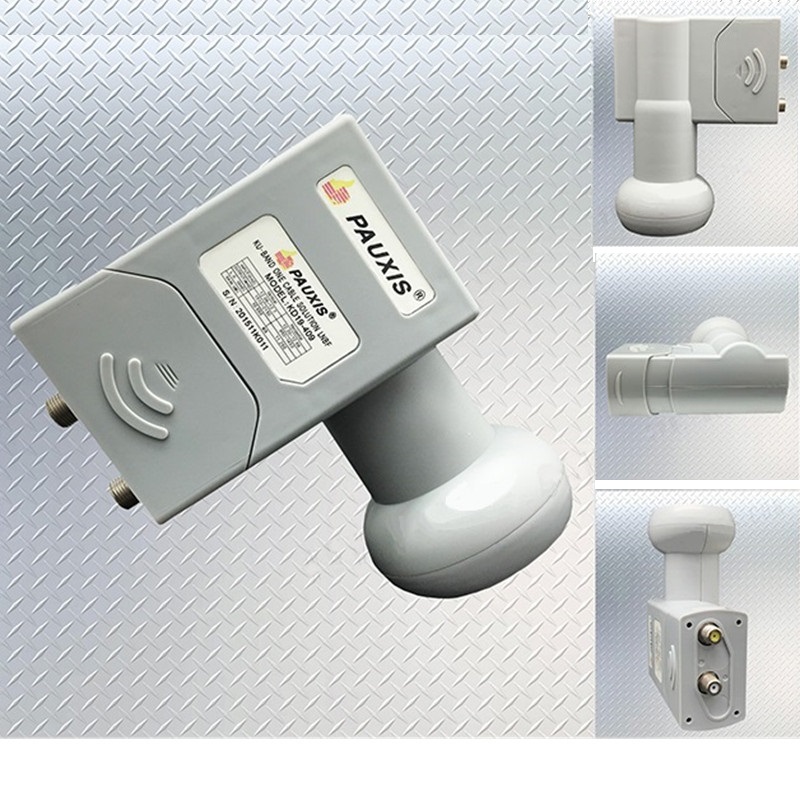

PAUXIS KD19-409 BAND DUAL POLARITY SINGLE OUTPUT LNBF

Technical Specification
MODEL:					KD19-409
Parameter					Specification
● Input Frequency range(Vertical)					12.06～12.70GHZ
● Input Frequency range(Horizontal)					12.20～12.68GHZ
● Terrestrial Input Frequency range					174～700MHZ
● Output Frequency range @ 950～2150MHZ					Vertical@ 1510～2150MHz
					Horizontal@ 950～1430MHz
● Polarization					H/V
● Noise Figure					≤1.0dB
● F/D radio					0.60±0.02
● Band Rejection﹣Vertical Polarization					≥20dB(@700MHZ-1440MHZ)
● Band Rejection﹣Horizontal Polarization					≥20dB(@1500MHZ-2160MHZ)
● Terrestrial to Cass output Rejection					≥30dB(@950-2150MHz)
● CASS to terrestriai output rejection					≥30dB(@174-700MHz)
● Cross Polarization					20dB
● Local Oscillator 1(Vertical Polarization)					10.550MHz
● Local Oscillator 2(Horizontal Polarization)					11.250MHz
● Temperature L.O.stability @ 25℃					±1.0 MHz
● Temperature L.O.stability (-30℃+60℃)					±2.0 MHz
● L.O.Phase noise @ 1 kHz					-60dBc/Hz
● L.O.Phase noise @ 10 kHz					-80dBc/Hz
● L.O.Phase noise @ 100 kHz					-90dBc/Hz
● Terrestrial Port insertion loss					≥ 2dB(@174MHz-700MHz)
● Conversion gain					52-65dB
● Flatness gain(950-2.150MHz)					±3.0 dB
● Flatness gain @ 36 MHz					±0.5 dB
● 1 dB Compression Point					≥ +3 dBm
● VSWR					2.5:1
● Image rejection					≥ 40dB
● Output return loss					≥ 10dB
● In band spurious level					≤ -60 dBc
● Spurious level @ 1400MHz(2㏄ harmonic)					≤ -70 dBc
● Output impedance					75Ω
● DC Power					16.0 V -20.0 V
● Current consumption					180mA
