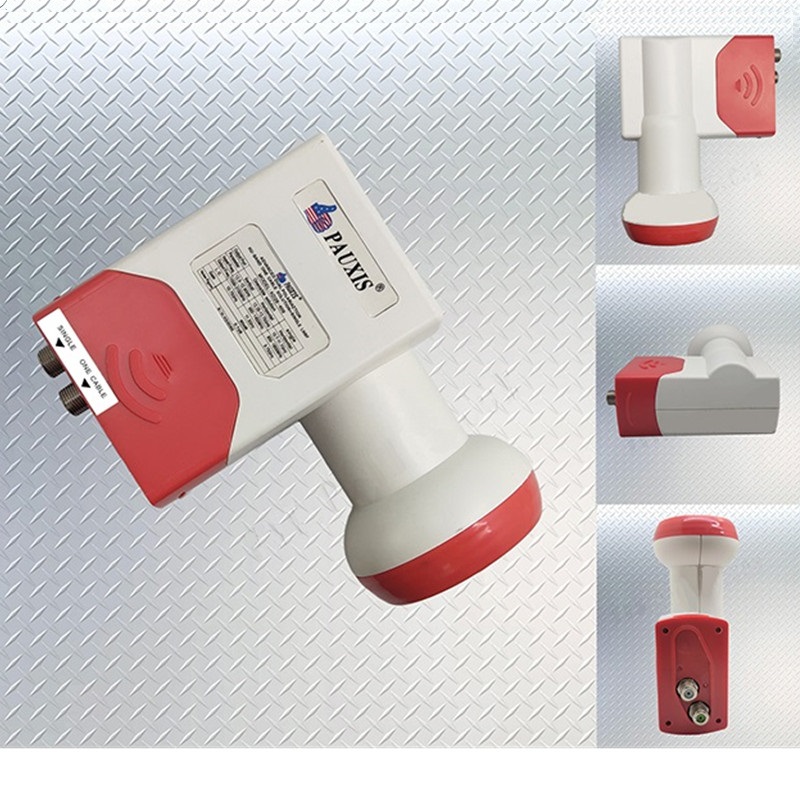

PAUXI SKD26-409 BAND DUAL POLARITY SINGLE OUTPUT LNBF
Technical Specification |
| MODEL: | Onecalbe Solution | Single |
| Parameter | Specification | Specification |
| ● Input Frequency range(Vertical) | 12.30～12.90GHZ | |
| ● Input Frequency range(Horizontal) | 12.25～12.75GHZ | 10.7～11.7GHZ |
| ● Output Frequency rane g | Vertical@ 1550～2150MHz | |
| Horizontal@ 950～1450MHz | Horizontal@ 950～1950MHz |
| ● Local Oscillator 1(Vertical Polarization) | 10.75GHz | |
| ● Local Oscillator 2(Horizontal Polarization) | 11.3GHz | 9.75GHz |
| ● Temperature L.O.stability @ 25℃ | ±2.0 MHz | ±1.0 MHz |
| ● Temperature L.O.stability (-30℃+60℃) | ±3.0 MHz | ±2.0 MHz |
| ● L.O.Phase noise @ 1 kHz | -60dBc/Hz | -60dBc/Hz |
| ● L.O.Phase noise @ 10 kHz | -80dBc/Hz | -80dBc/Hz |
| ● L.O.Phase noise @ 100 kHz | -90dBc/Hz | -90dBc/Hz |
| ● Conversion gain | 55-65dB | 55-65dB |
| ● Flatness gain(in band) | ±3.0 dB | ±3 dB |
| ● Flatness gain @ 36 MHz | ±0.5 dB | ±0.5 dB |
| ● Noise Figure | ≤1.0dB | ≤1.0dB |
| ● Polarization | H/V | H |
| ● Band Rejection﹣Vertical Polarization | ≥20dB(@1550MHZ-2150MHZ) | |
| ● Band Rejection﹣Horizontal Polarization | ≥20dB(@950MHZ-1450MHZ) | |
| ● Cross Polarization | 20dB | 20dB |
| ● F/D radio | 0.60±0.02 | 0.60±0.02 |
| ● VSWR | 2.5:1 | 2.5:1 |
| ● Image rejection | ≥ 40dB | ≥ 40dB |
| ● Output return loss | ≥ 10dB | ≥ 10dB |
| ● In band spurious level | ≤ -60 dBc | ≤ -60 dBc |
| ● Output impedance | 75Ω | 75Ω |
| ● DC Power | 10.0 V -20.0 V | 10.0 V -20.0 V |
| ● Current consumption | 200mA | 130mA |
