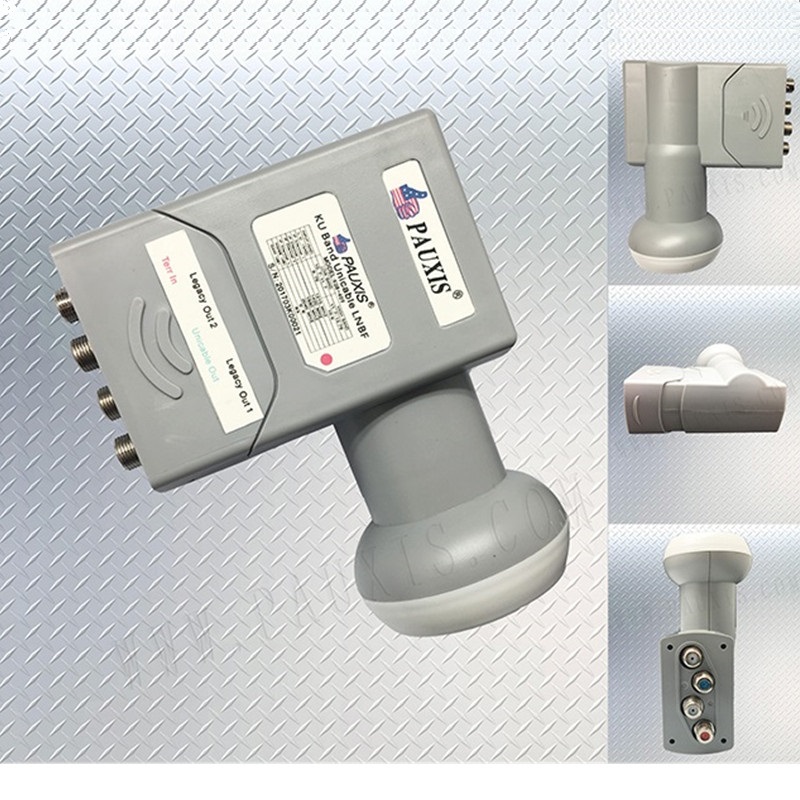

PAUXI KU8-409 BAND DUAL POLARITY SINGLE

Technical Specification
NAME	UNICABLE QUAD+TWIN LNB+Terr.
Parameter	Specification
	LOW BAND	HIGH BAND
● Input Frequency range	10.7～11.7GHz	11.7～12.75GHz
● Output Frequency range	950～1950MHz	1100～2150MHz
● L.O.	9.75GHz	10.6GHz
● Terrestrial Input Frequency range	47-862 MHZ
● L.O. Frequency Stability	±1MHz(MAX.) ＠ +25℃
	±2MHz (MAX.) ＠ -30℃～+80℃
● L.O.Phase Noise	-60dBc/Hz ＠ 1KHz
	-80dBc/Hz ＠ 10KHz
	-90dBc/Hz ＠ 100KHz
● Noise Figue	1.0dB (MAX.)
● Conversion Gain	60dB (MIN.)
● Gain Flatness	±0.5dB / 27MHz
● Gain Variation P-P	±3dB (MAX.)
● Isolation Between polarizations	20dB (MIN.)
● Image Rejection	40dB
● Return Loss	10dB（TYP)
● Output VSWR	2.5:1
● Output channel	60MHZ
● IF channel 1 (SCR0)	1210MHZ
● IF channel 2 (SCR1)	1420MHZ
● IF channel 3 (SCR2)	1680MHZ
● IF channel 4 (SCR3)	2040MHZ
● Isolation Between channels	20dB (MIN.)
● Number of fullband outputs	2
● SCR control	DiSEqC(EN-50494)
● Fullband LNB switching voltages(V	14.2<(V);>15V(H)
● Band switching(Tone)	22 kHz(min 220mV)
● DC Current Consumption	200mA @13.5V
● Output Connecter	75ohm(F-Type)
● Operating Temperature	-30℃ ～ +80℃
● Relative Humidity	0%～95%
● Water proof Test	+20℃ Water for 5 Minutes
● Weight	250 g
