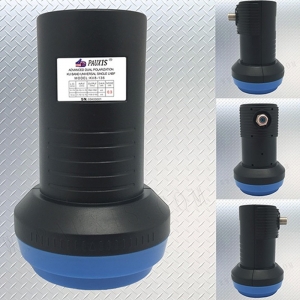

PAUXIS KV8-136 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF


PAUXIS KV8-136 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF


PAUXIS KV8-136 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF

PAUXIS KV8-136 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF

  • 商品编号：G68BE37CA2F6D2
  • 货　　号：G68BE37CA2F6D2
  • 计量单位：个
  • 市场价： ￥0.00
  • 销售价： ￥0.00
购买数量：
  (库存9999+)
app hook

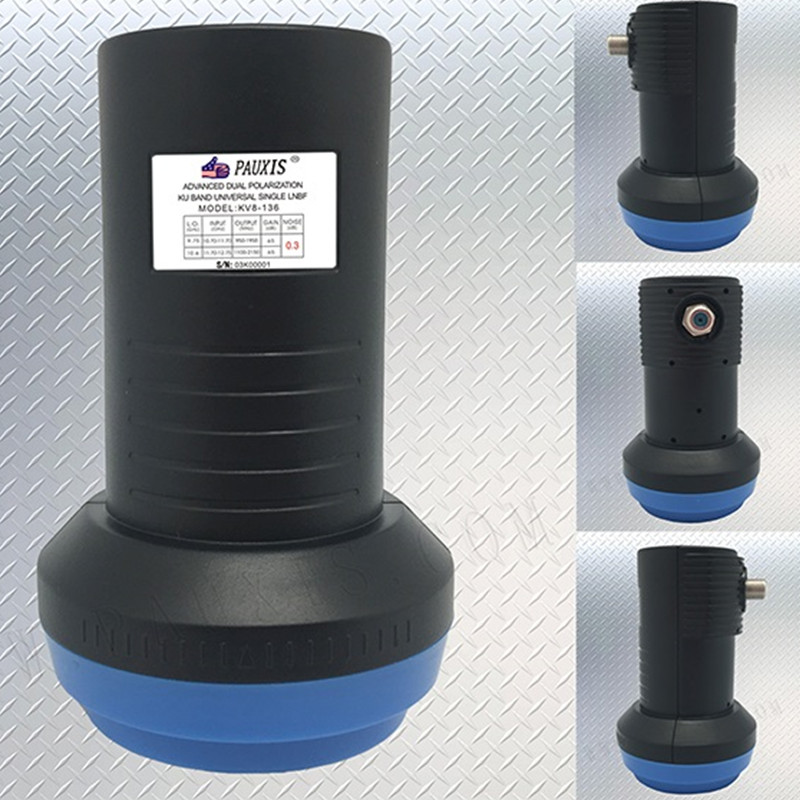

PAUXIS KV8-136 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF

MODEL:
KV8-136

Parameter
Specification

Low Band
High Band
Input frequency range
10.7-11.7GHZ
11.7-12.75GHZ
Output frequency range
950-1950MHZ
1100-2150MHZ
Noise Figure
0.5dB
Conversion Gain
65dB(TYP.)
Gain Flatness
±0.5dB/27MHZ
Cross pol Isolation
21dB(TYP.)
L.O.Frequency
9.75GHZ
10.6GHZ
L.O.Frequency Stability
±1MHZ(MAX.)  @  ＋25℃

±1.5MHZ(MAX.)  @  -40℃～＋80℃
L.O.Phase Noise
-60dBc/HZ @ 1KHZ

-85dBc/HZ @ 10KHZ

-90dBc/HZ @ 100KHZ
Gain Variation P-P
±2.5dB(MAX.)
Image Rejection
40dB(MIN.)
P 1dB Gain Compression
0dBm(MIN.)
Output VSWR
2.5:1(MAX.)
DC Current Consumption
100mA(MAX)
LOW/HIGH BAND Switching
0KHZ
22±4KHZ
Output Connecter
75ohm(F-Type)
POL Switching Voltage
11.5～14.5V @ V Polarization

15.5～22.0V @ H Polarization
Operating Temperature
-40℃～＋80℃
Relative Humidity
5%～90%
