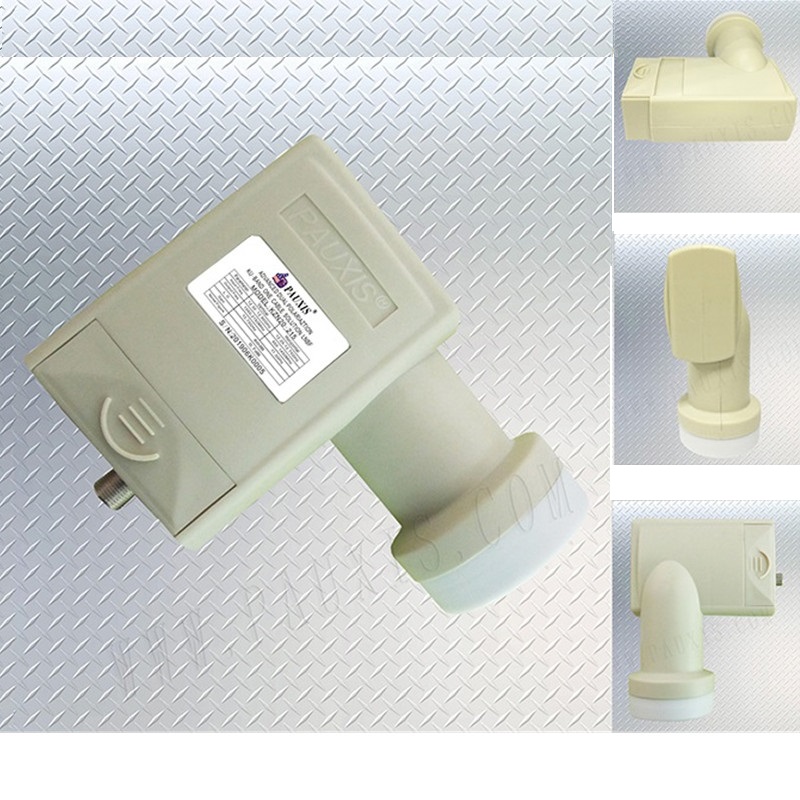

PAUXIS KZN20-215 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF

Technical Specification
MODEL:					KZN20-215
Parameter					Specification
● Input Frequency range(Vertical)					12.30～12.90GHZ
● Input Frequency range(Horizontal)					12.25～12.75GHZ
● Output Frequency range					Vertical@ 1550～2150MHz
					Horizontal@ 950～1450MHz
● Local Oscillator 1(Vertical Polarization)					10.75GHz
● Local Oscillator 2(Horizontal Polarization)					11.3GHz
● Temperature L.O.stability @ 25℃					±1.0 MHz
● Temperature L.O.stability (-30℃+60℃)					±2.0 MHz
● L.O.Phase noise @ 1 kHz					-60dBc/Hz
● L.O.Phase noise @ 10 kHz					-80dBc/Hz
● L.O.Phase noise @ 100 kHz					-90dBc/Hz
● Conversion gain					58-65dB
● Flatness gain(in band)					±3.0 dB
● Flatness gain @ 36 MHz					±0.5 dB
● Noise Figure					≤1.0dB
● Polarization					H/V
● Band Rejection﹣Vertical Polarization					≥20dB(@1550MHZ-2150MHZ)
● Band Rejection﹣Horizontal Polarization					≥20dB(@950MHZ-1450MHZ)
● Cross Polarization					20dB
● F/D radio					0.60±0.02
● VSWR					2.5:1
● Image rejection					≥ 40dB
● Output return loss					≥ 10dB
● In band spurious level					≤ -60 dBc
● Output impedance					75Ω
● DC Power					10.0 V -20.0 V
● Current consumption					200mA
