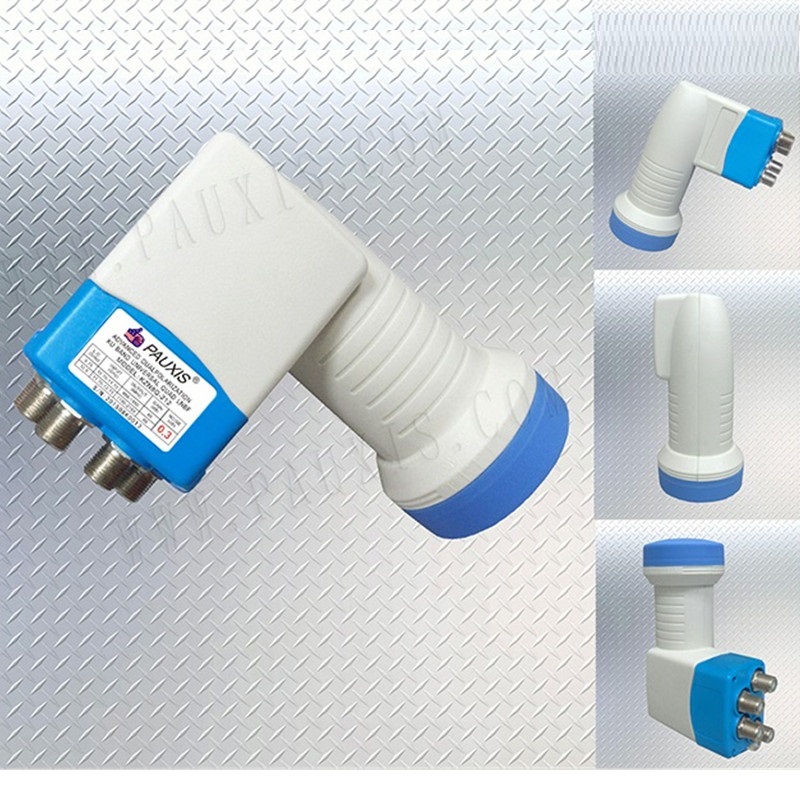

PAUXIS KZN8Q-212 C-BAND DUAL POLARITY SINGLE OUTPUT LNBF
| MODEL: | KZN8Q-212 | |||||||||
| Parameter | Specification | |||||||||
Low Band | High Band | |||||||||
| Input frequency range | 10.7-11.7GHZ | 11.7-12.75GHZ | ||||||||
| Output frequency range | 950-1950MHZ | 1100-2150MHZ | ||||||||
| Noise Figure | 0.5dB | |||||||||
| Conversion Gain | 65dB(TYP.) | |||||||||
| Gain Flatness | ±0.5dB/27MHZ | |||||||||
| Cross pol Isolation | 21dB(TYP.) | |||||||||
| L.O.Frequency | 9.75GHZ | 10.6GHZ | ||||||||
| L.O.Frequency Stability | ±1MHZ(MAX.) @ ＋25℃ | |||||||||
±1.5MHZ(MAX.) @ -40℃～＋80℃ | ||||||||||
| L.O.Phase Noise | -60dBc/HZ @ 1KHZ | |||||||||
-85dBc/HZ @ 10KHZ | ||||||||||
-90dBc/HZ @ 100KHZ | ||||||||||
| Gain Variation P-P | ±2.5dB(MAX.) | |||||||||
| Image Rejection | 40dB(MIN.) | |||||||||
| P 1dB Gain Compression | 0dBm(MIN.) | |||||||||
| Output VSWR | 2.5:1(MAX.) | |||||||||
| DC Current Consumption | 145mA(MAX) | |||||||||
| LOW/HIGH BAND Switching | 0KHZ | 22±4KHZ | ||||||||
| Output Connecter | 75ohm(F-Type) | |||||||||
| POL Switching Voltage | 11.5～14.5V @ V Polarization | |||||||||
15.5～22.0V @ H Polarization | ||||||||||
| Operating Temperature | -40℃～＋80℃ | |||||||||
| Relative Humidity | 5%～90% | |||||||||
